Solvent Ethanol Botanical Methanol Herbal Tincture Plant Extraction Machine

Customization:	Available
After-sales Service:	Online Support/Visit Client's Plant Site
Certification:	CE, GMP, ISO

Basic Specifications

Model NO.

TQD

Condition

New

Material

304/316L Stainless Steel

Warranty

1 Year

Capacity

50L - 10000L

Industries

Biology, Chinese Medicine

Core Component

Extraction Tank

Function

Extracting Active Ingredients by Solvent

Output Form

Liquid (Tincture)

Heating Mode

Steam/Hot Oil/Hot Water/Electrical

Standard

FDA and GMPs

HS Code

84792000

Product Description

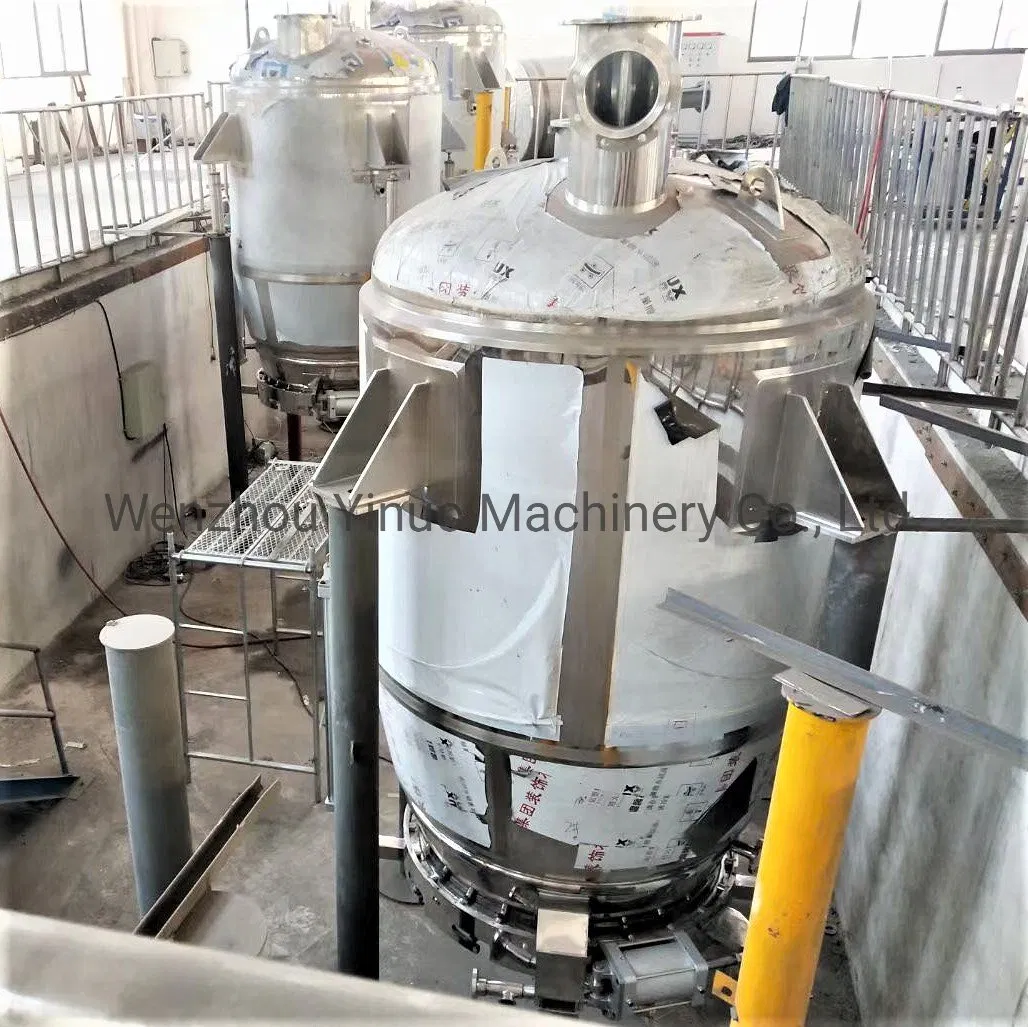

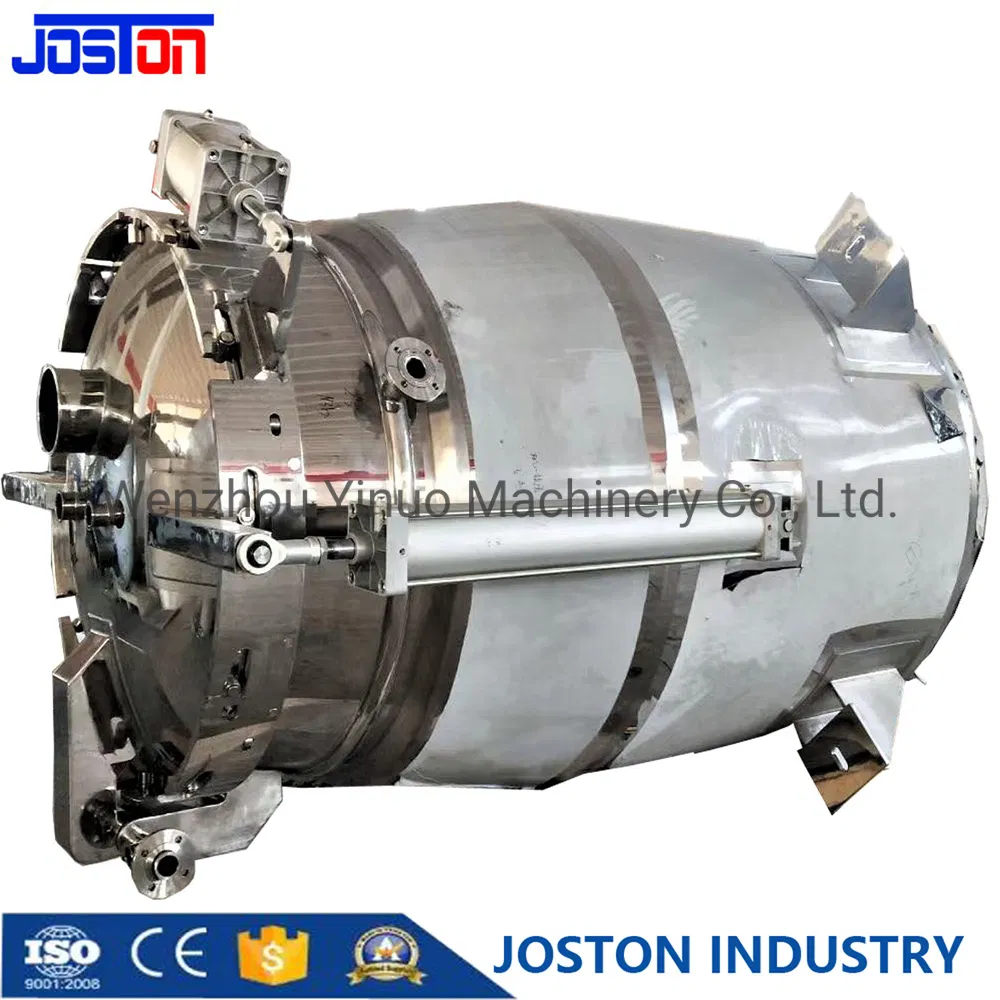

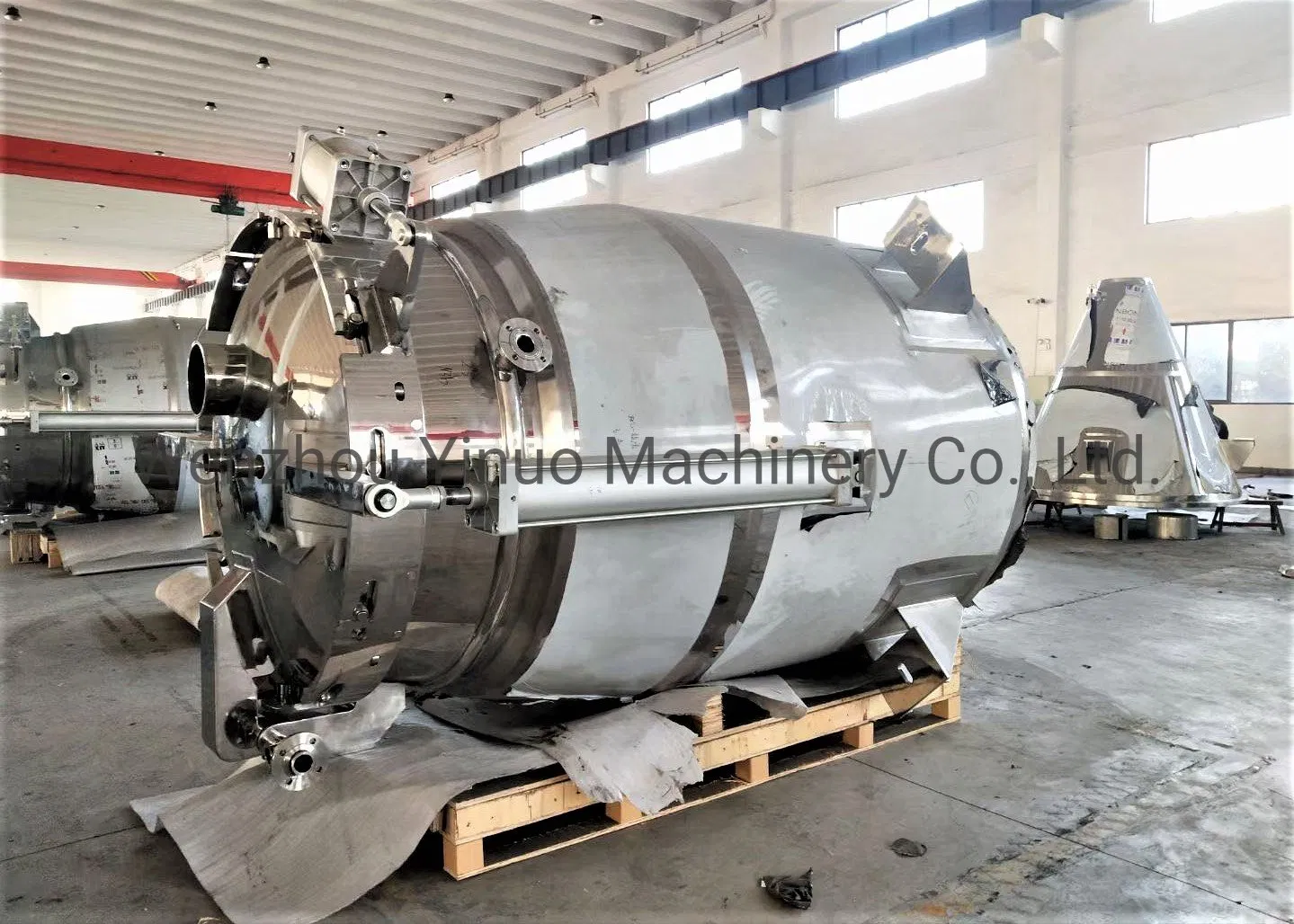

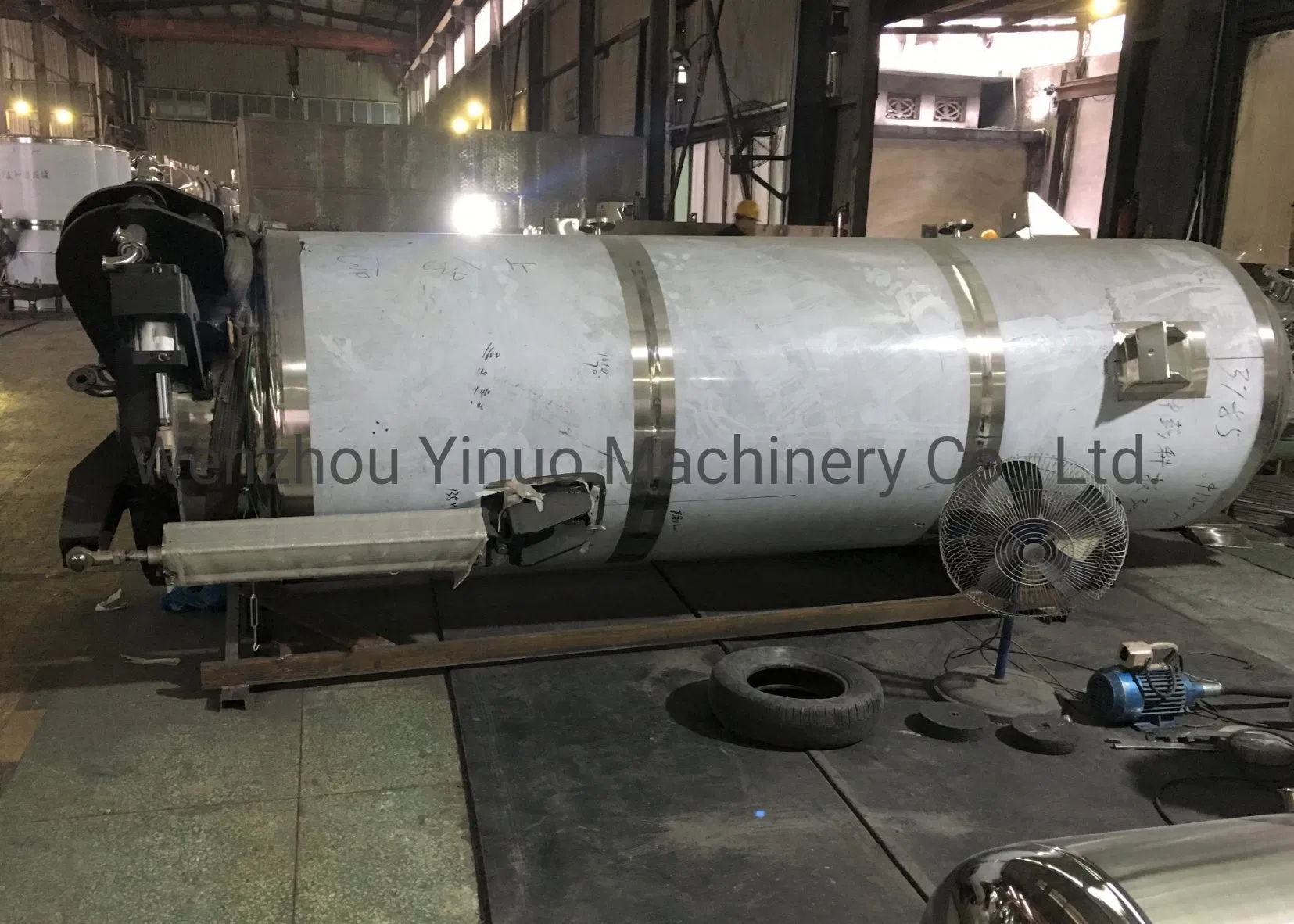

Solvent Botanical Herbal Tincture Plant Extraction Machine: Specialized equipment designed to extract active ingredients from herbal raw materials using solvents such as ethanol, methanol, or acetone.

What is a Tincture?
A tincture is a clear liquid preparation created by extracting or dissolving drug substances with a specific concentration of ethanol. These can be administered orally or externally. Common examples include belladonna, orange peel, and iodine tinctures. They are characterized by ease of preparation and preservation.

Three Primary Working Methods

1. Dissolution or Dilution Method:
Powdered herbal products are dissolved or diluted in ethanol, allowed to stand, and filtered.

Extraction tank (single layer or double jacket for faster heating).
Duplex filter or centrifuge for particle removal.
Transfer pump and storage tank.

2. Impregnation Method:
Crushed materials are soaked in a covered container for 3-5 days. The leachate is then combined and filtered.

Extraction tank equipped with an agitator mixer.
Residue material discharge system.
Particle filtration and storage units.

3. Percolation (Diacolation) Method:
Solvent is percolated through the material until the specified volume is reached.

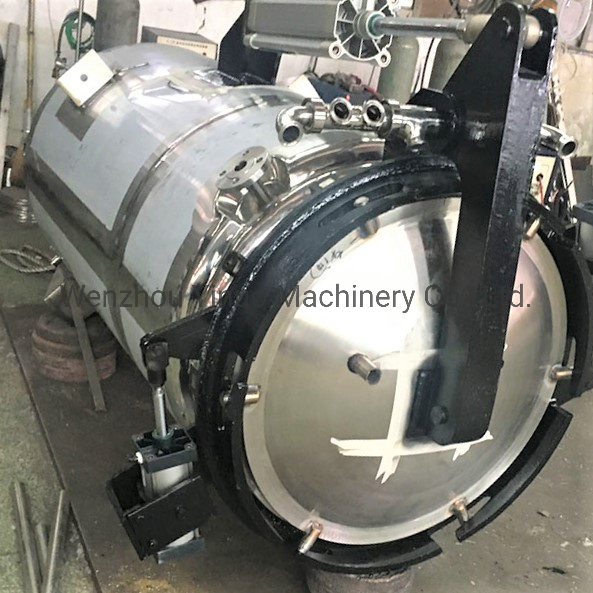

Single-layer extraction tank with pneumatic discharge.
High-precision filtration systems.
Complete liquid transfer and storage solution.

Technical Parameters

Specification Model	TQD-1000	TQD-2000	TQD-3000	TQD-6000	TQD-8000	TQD-100000
Volume (L)	1200	2300	3200	6300	8500	11000
Tank Design Pressure (Mpa)	0.09	0.09	0.09	0.09	0.09	0.09
Sandwich Design Pressure (Mpa)	0.3	0.3	0.3	0.3	0.3	0.3
Heating Area (m²)	3	4.7	6	7.5	9.5	12
Condensation Area (m²)	4	4	5	5	8	10
Slag Gate Diameter (mm)	800	800	1000	1000	1000	1000
Stirring Speed (r/min)	25 ~ 40

Packaging & Shipping

Packaging: PE wrapping film followed by robust wooden case packaging (fumigated for export if required).
Shipping: Standard truck transport to port; flexible logistics based on customer economic requirements.

Frequently Asked Questions

How much experience does your factory have?

We have more than 15 years of professional experience in machinery manufacturing and design.

What is the warranty period for this extraction machine?

We provide a 1-year warranty for machine operation and offer life-long technical service support.

What payment methods are accepted?

We accept Western Union, T/T, D/P, D/C, and irrevocable L/C at sight.

Do you provide overseas installation and commissioning?

Yes, we can send engineers to your plant to assist with equipment installation, commissioning, and staff training.

How can I track the production status of my order?

We provide weekly updates including photos and videos of the manufacturing process. Final inspections (FAT) can also be arranged.

What is included in the after-sales service?

We offer long-term support, on-site installation if needed, and a dedicated service line for immediate troubleshooting via call or email.
